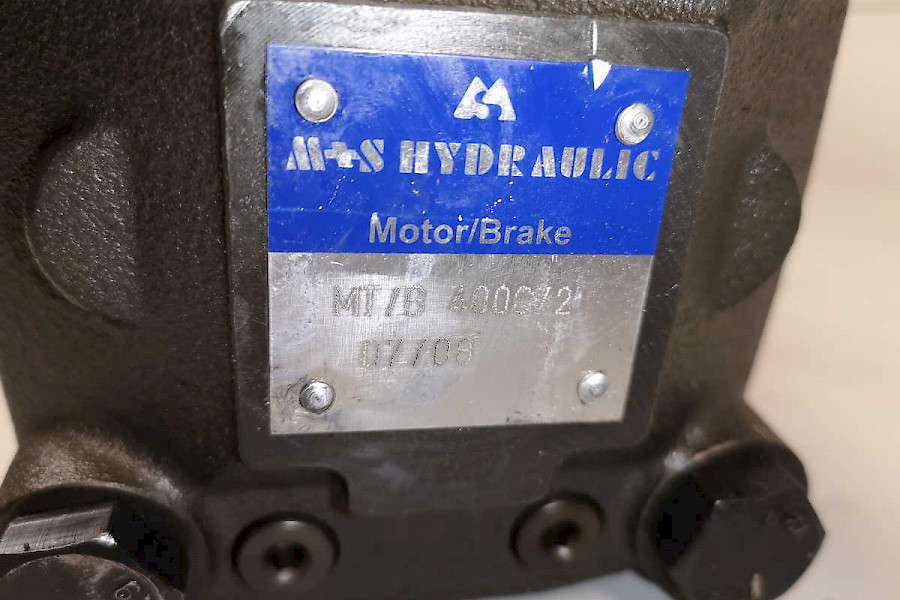

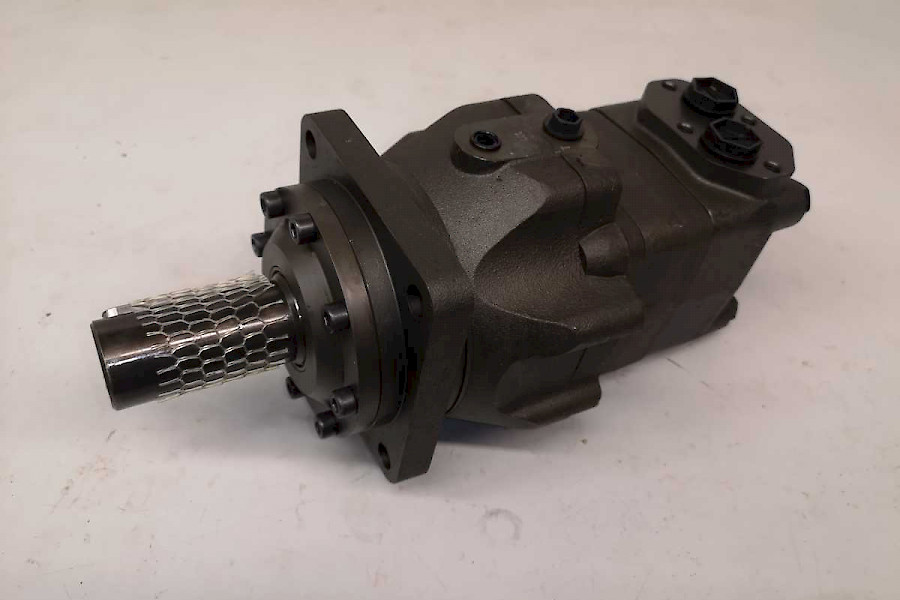

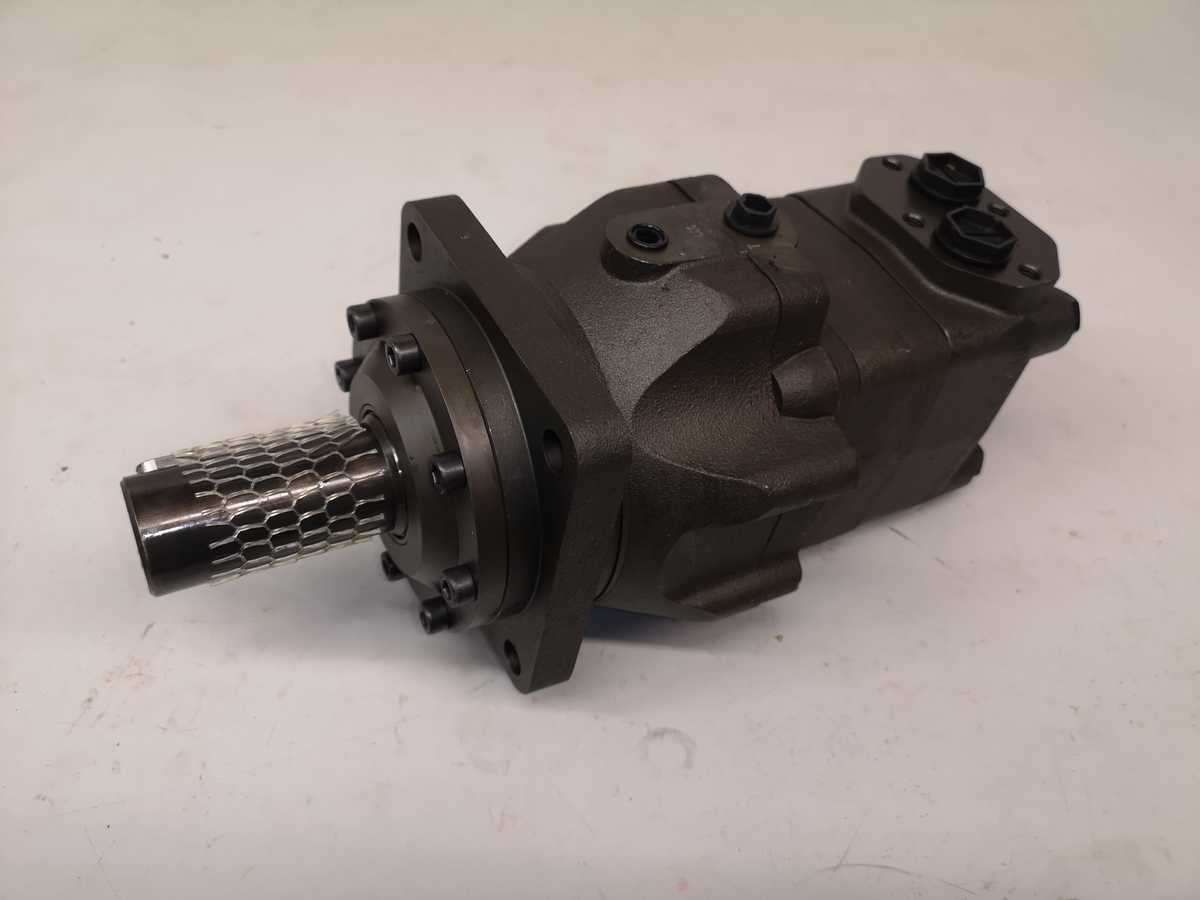

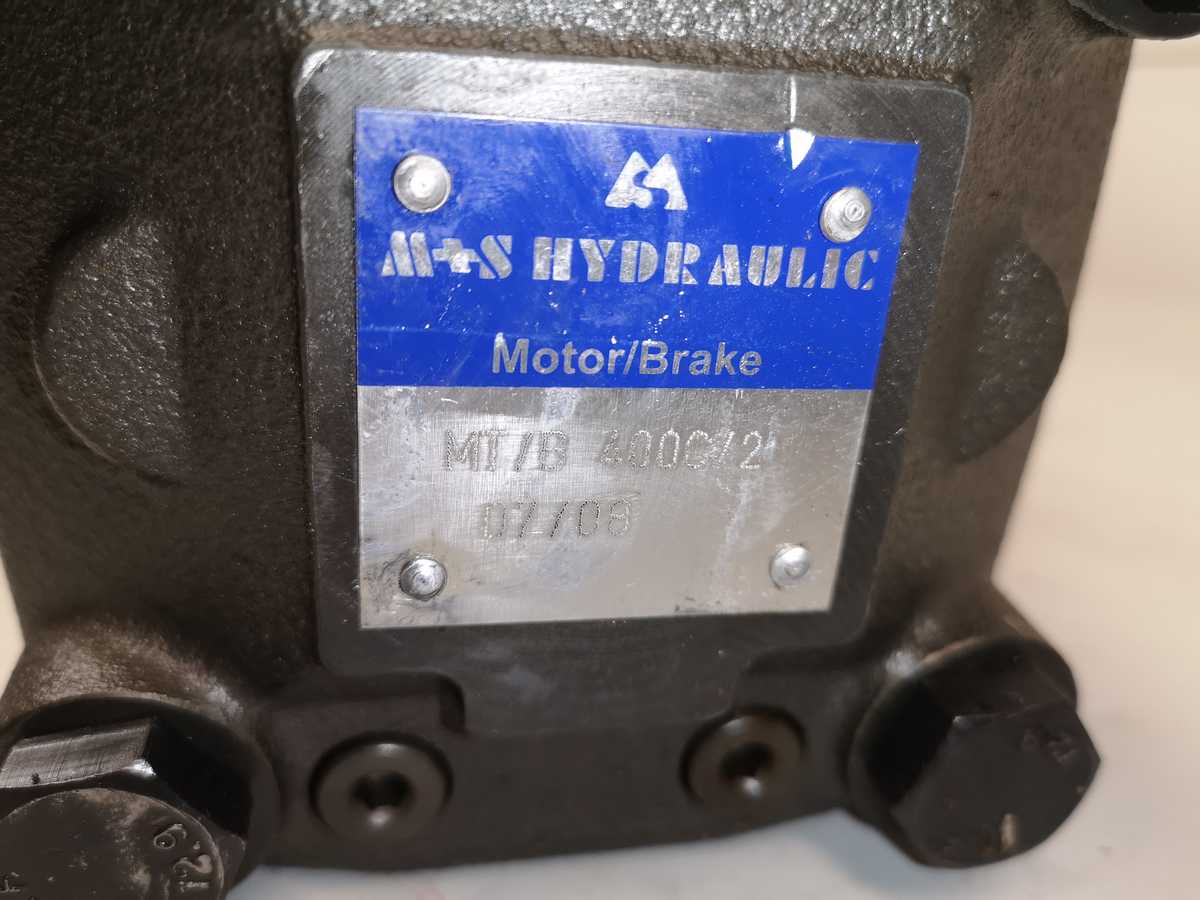

Hydraulimoottori MT/B 400C/2

Sijainti

F0524

Tuotetiedot

Hydraulimoottori MT/B 400C/2

Paino: 31 kg
Kunto: uusi
Saatavuus: 1

Specifications:

Displacement [ccm/rev]: 410.9
Side ports 2x G3/4 inch BSPP

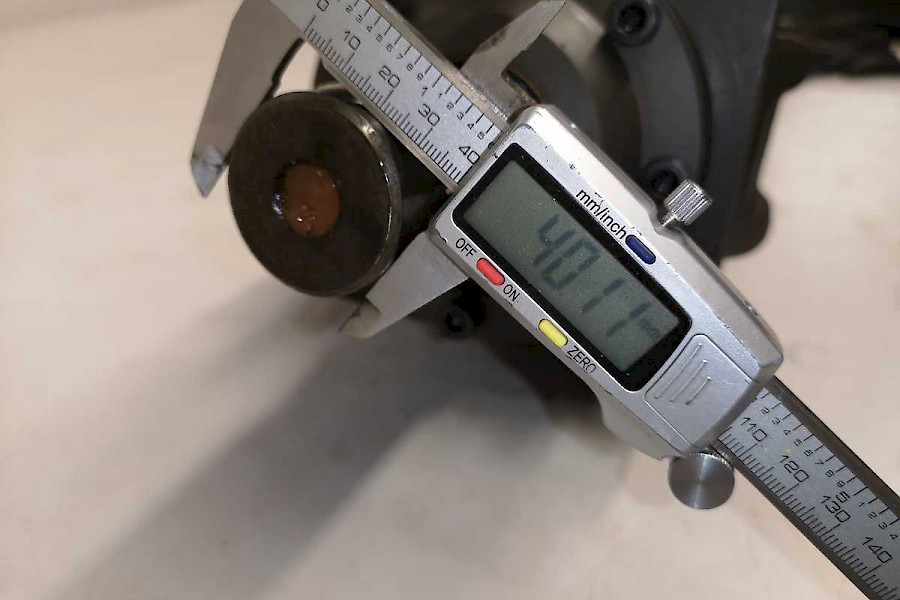

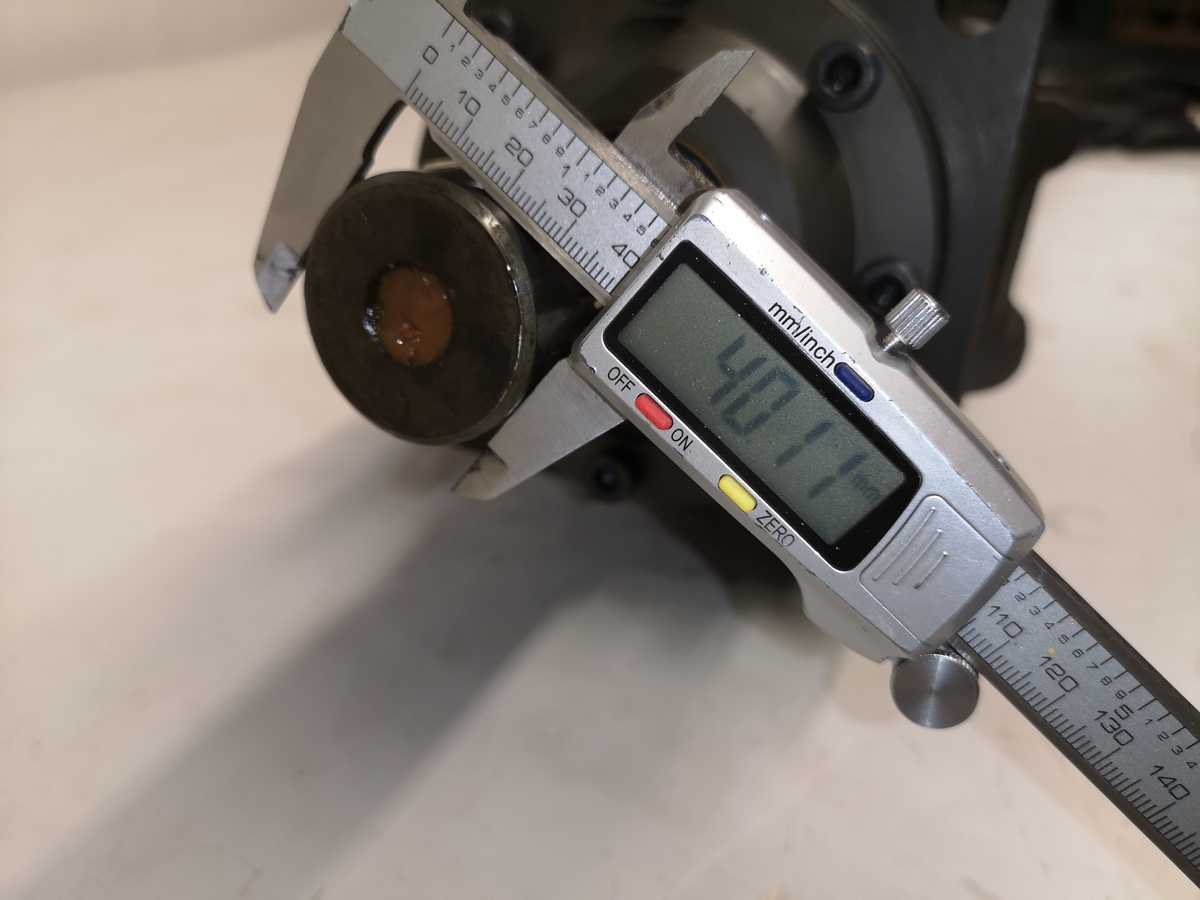

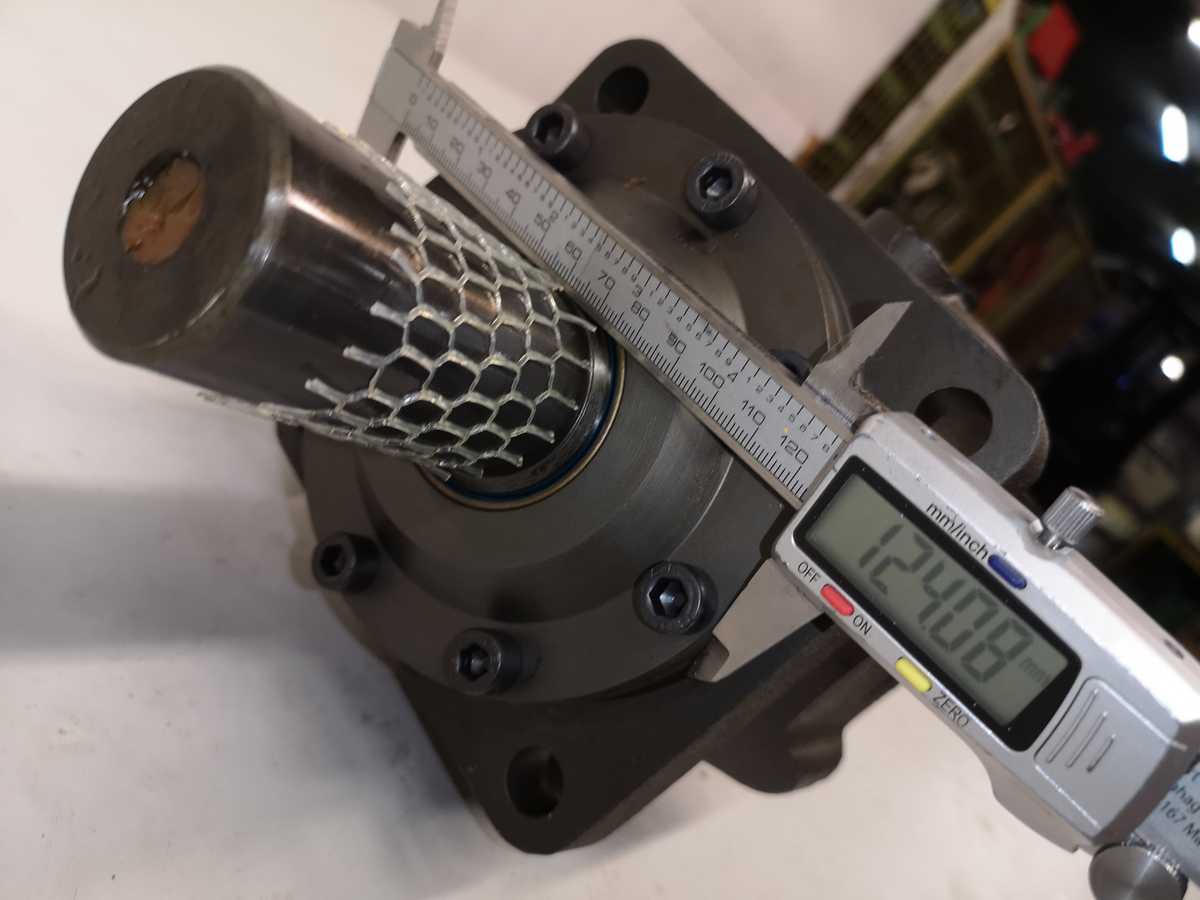

Shaft: Cylindrical: Ø 40 mm
Square mount 4-holes (hole distance: 160 mm)
Static torque of the brake: 1430 Nm
Min. opening pressure: 32-35 bar
Max. opening pressure: 280 bar

Technical Data (for continuous use):

max. speed: 305 rev/min
max. torque: 1080 Nm
max. output: 30 kW
max. oil flow: 125 l/min
max. inlet pressure: 210 bar
minimum speed: 6 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 140 bar
