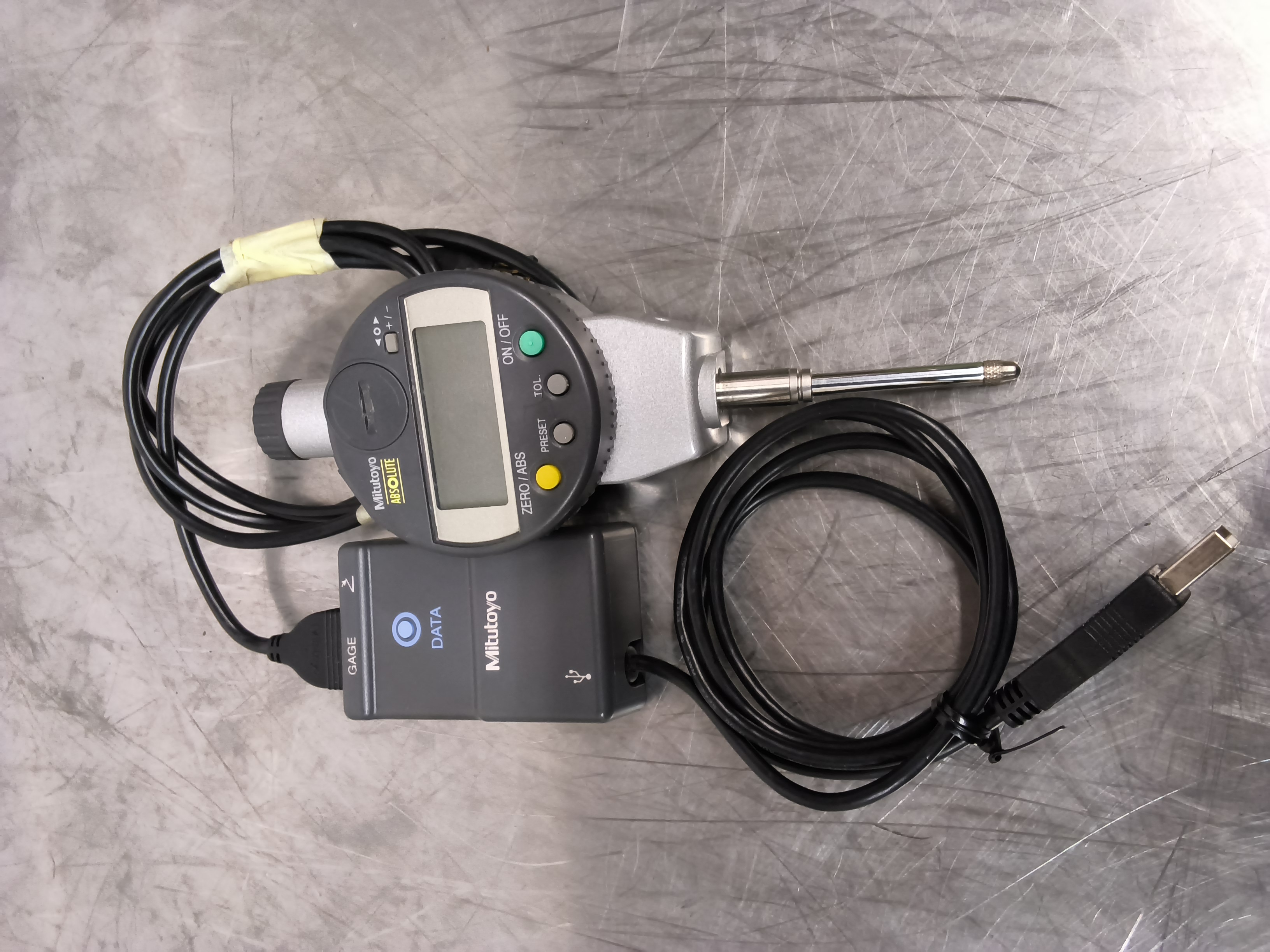

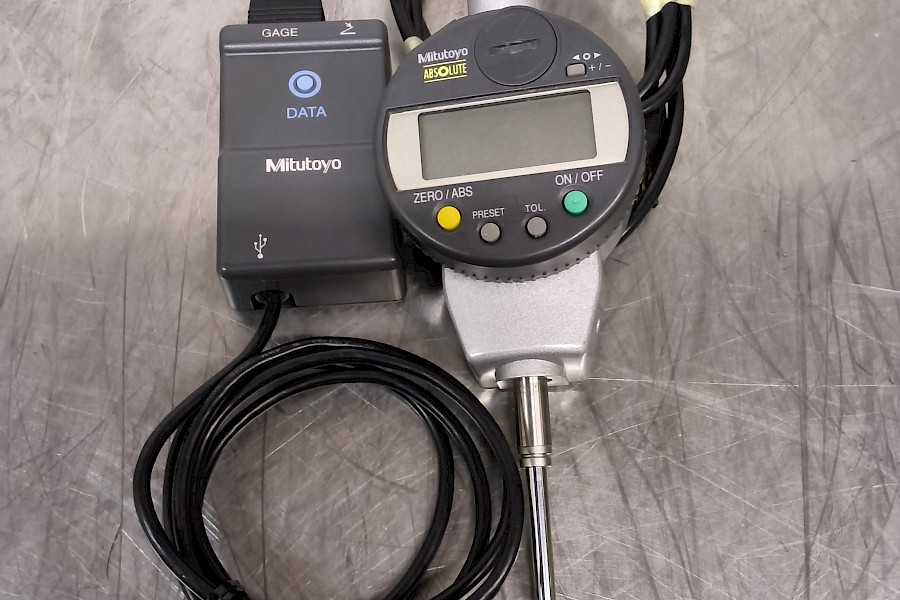

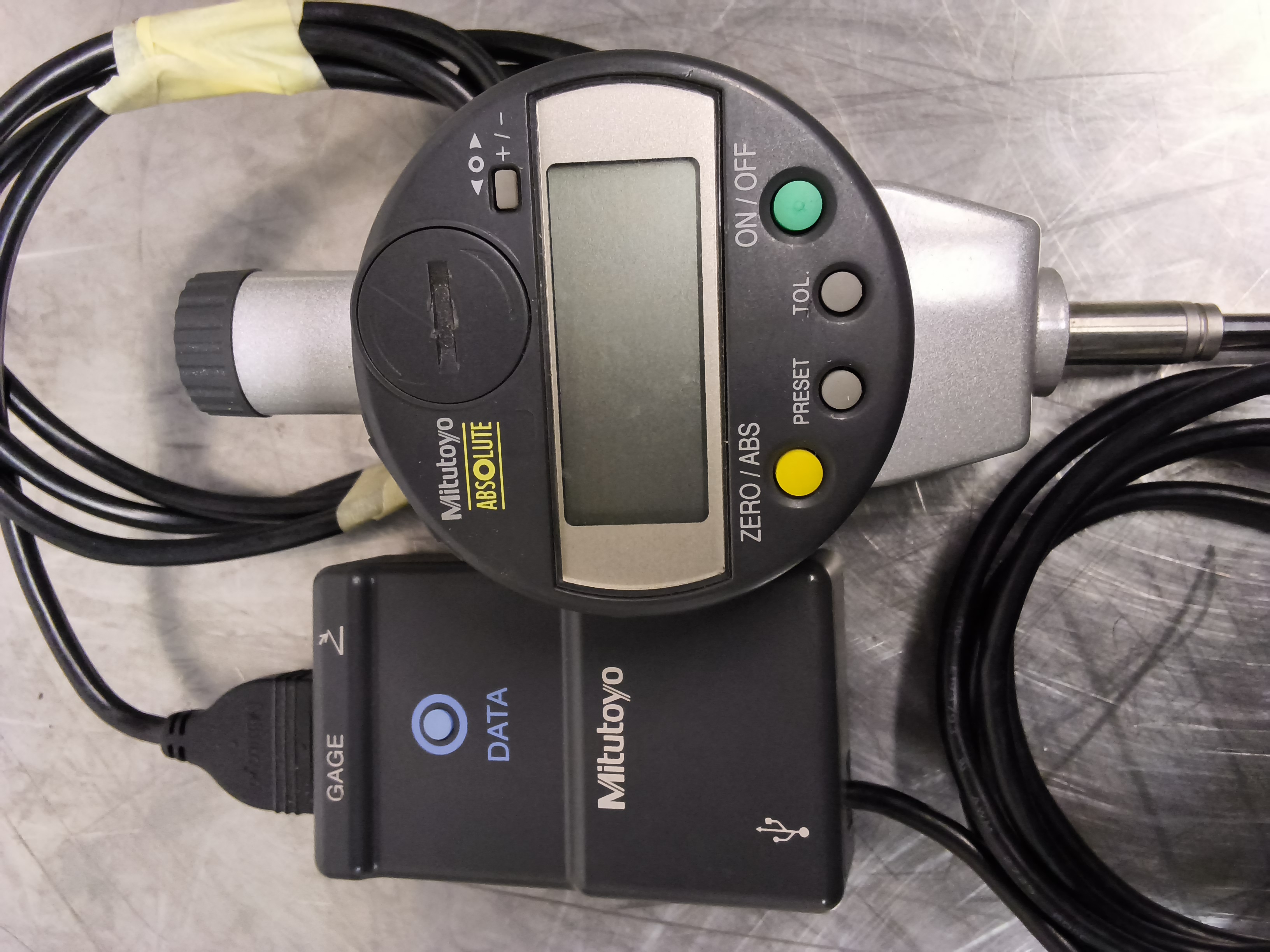

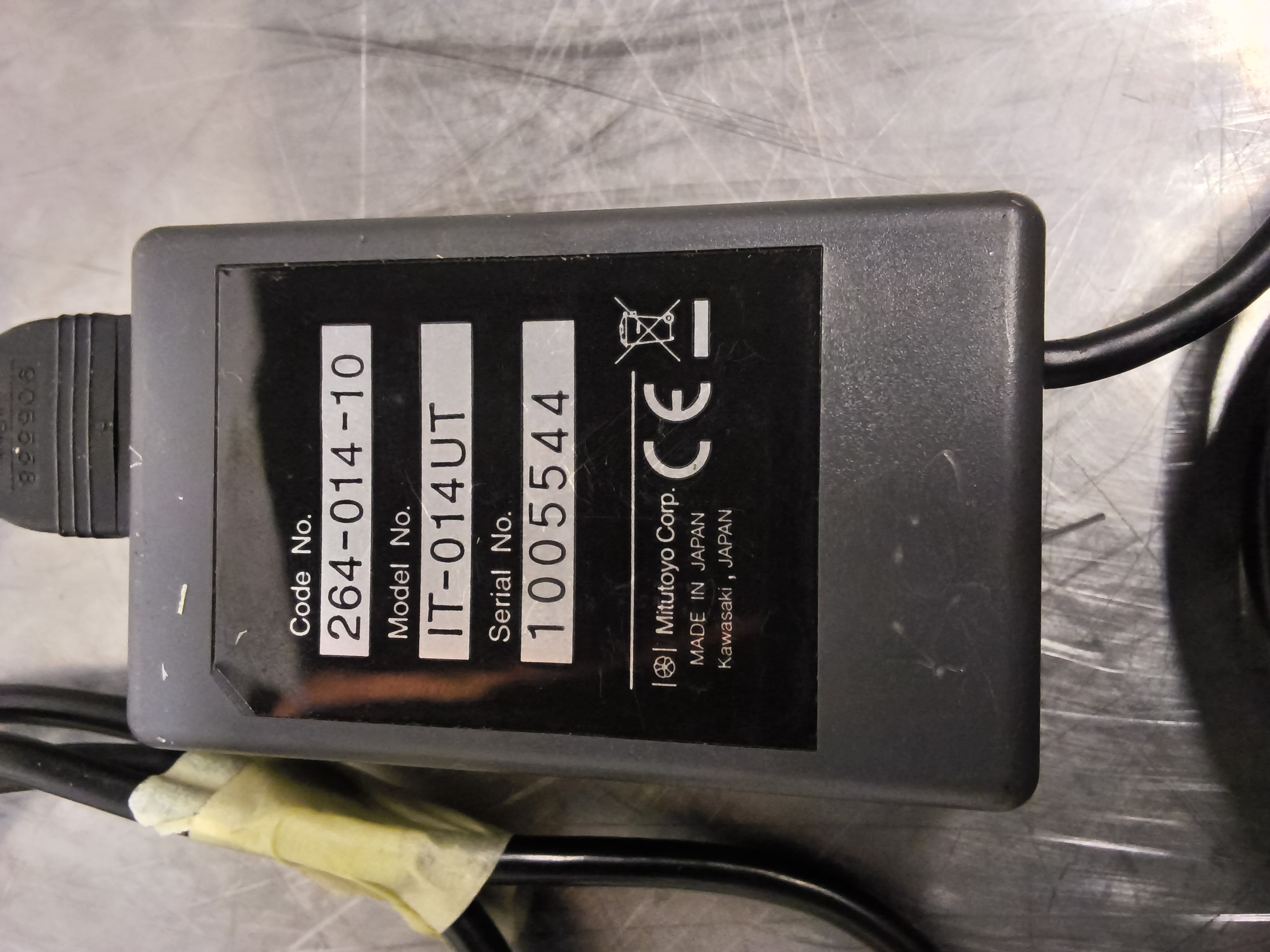

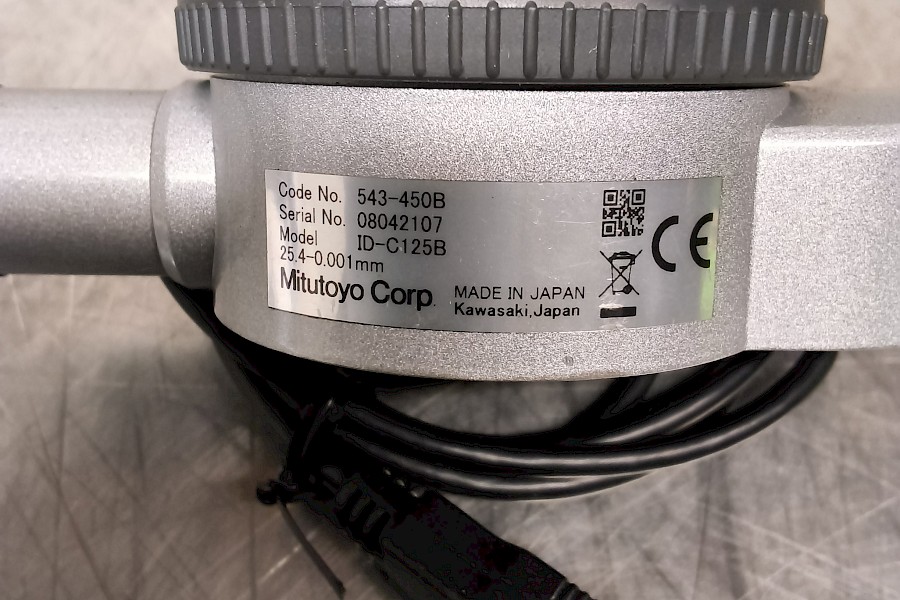

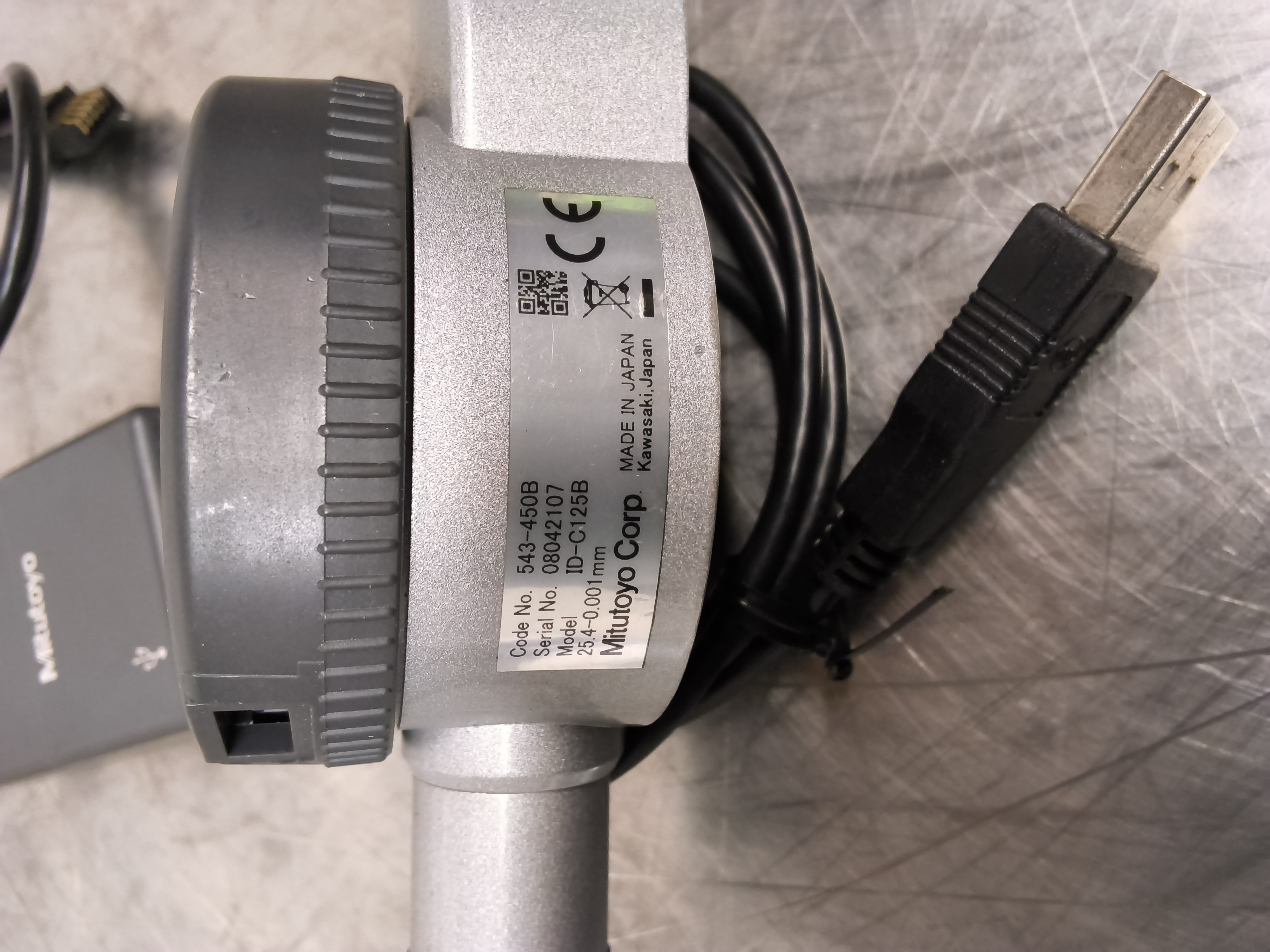

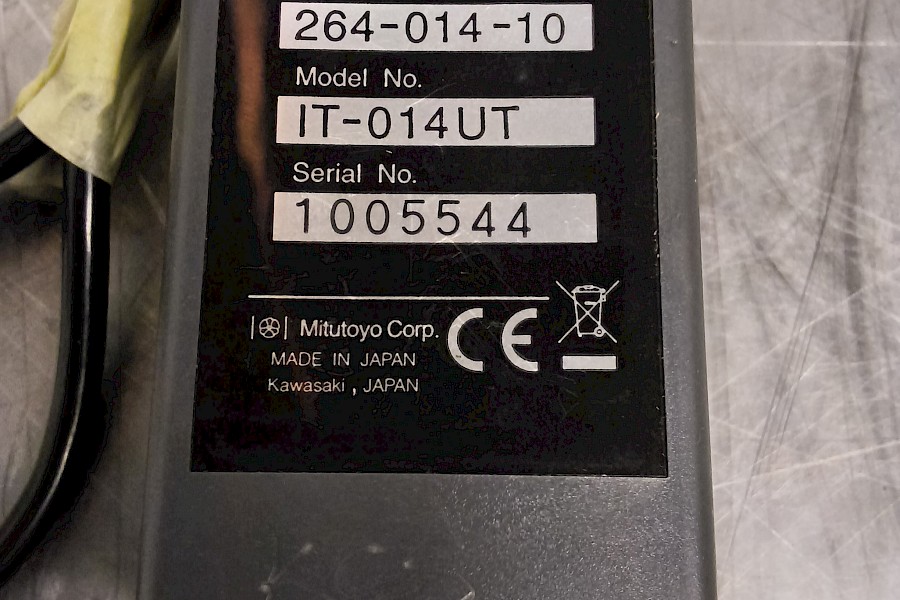

MITUTOYO ABSOLUTE Digimatic Indicator ID-C Series 543
with Green/Red LED GO/NG Signal Output Function
Features:
- With the max./min. value holding function, the signal ID-C can output the signal of the GO/±NG judgment result against the peak values set. Substitute for the mechanical/electrical contact, the judgement is carried out by calculating the measurement data obtained. This provides high reliability with no deterioration of the contact point and volume adjustment.
- The signal can be output to an external device like a sequencer through the NPN open-collector.

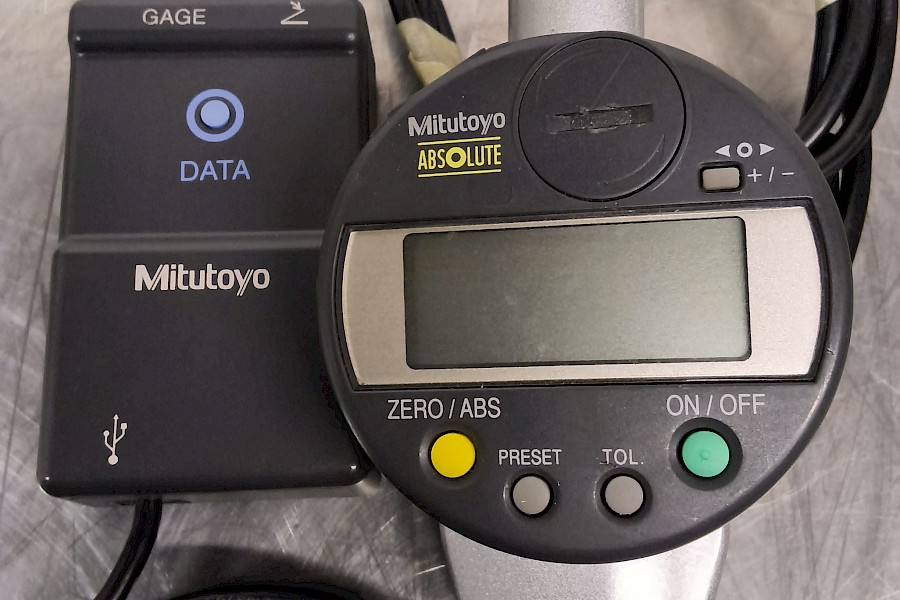

- The GO/±NG judgment result is also indicated by the green/red LED and the''<, O,>'' signs on LCD.
- Employing the ABSOLUTE linear encoder, the Signal ID-C always displays the spindle “Absolute Position” from the origin at power-on.
- The Signal ID-C achieves the IP54 protection level to resist dust and contaminants for safe operation in harsh machine shop environments.
Technical Data:
- Accuracy: Refer to the list of specifications.
- Resolution: 0.001mm, .00005”/0.001 mm or .0001”/0.001 mm
- Display: LCD
- Length standard: ABSOLUTE electrostatic capacitance type linear encoder
- Max.response speed: Unlimited
- Measuring force: 2.0N or less
- Power supply: DC 12-24V±10%
- Dust/Water protection level: IP54
Function:
- Data output (-NG/OK/NG signal, NPN open collector), Remote control ( hold-preset, preset-recall,zero-set), Origin set/Preset, Zeroset, GO/±NG judgment, Max/Min/Runout value holding, Counting direction switching, Power ON/OFF, inch/mm conversion ( on inch/metric models only)
- Alarm: Low voltage, Counting value composition error, over-flow error, Tolerance limit setting error.
