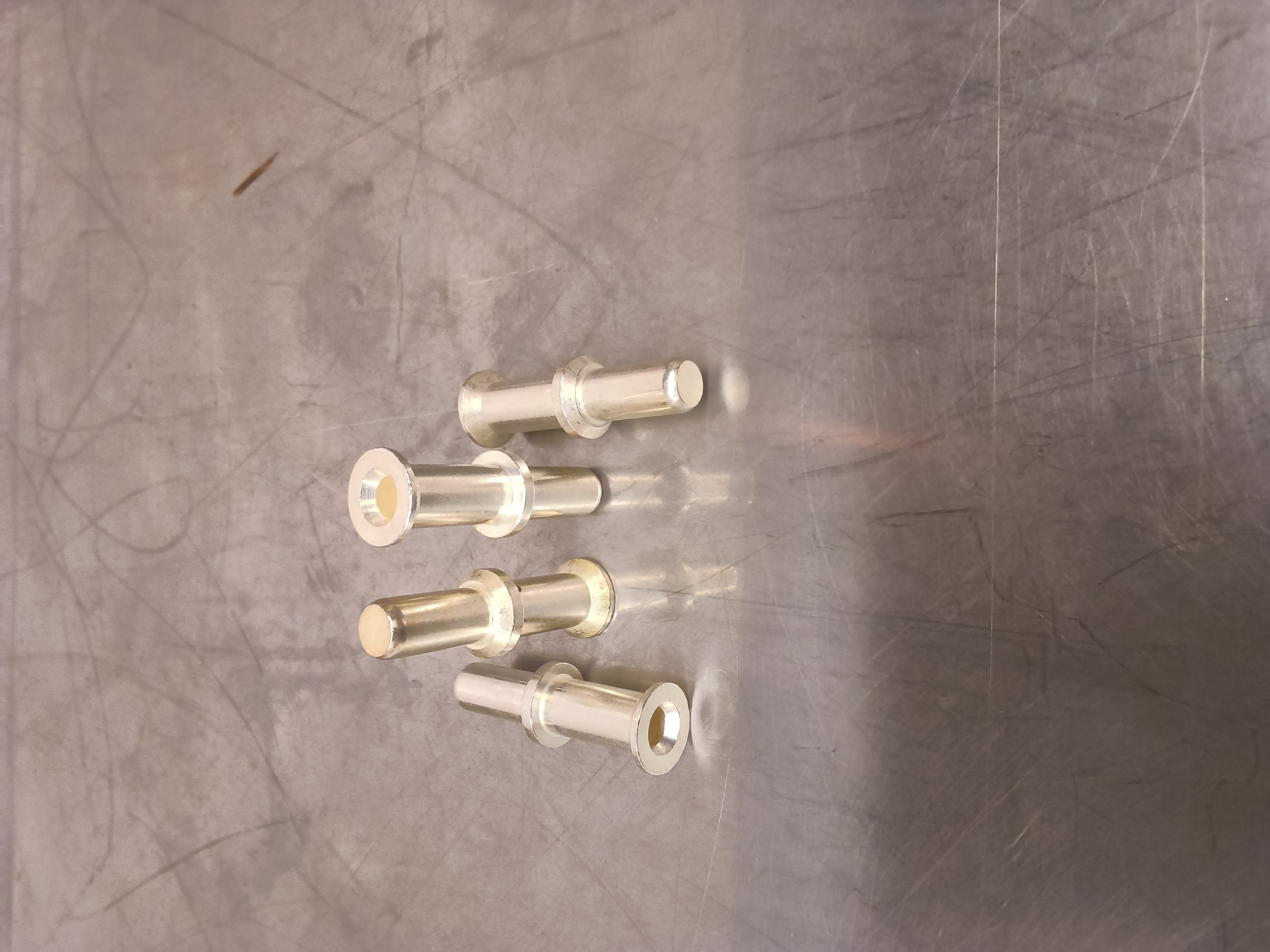

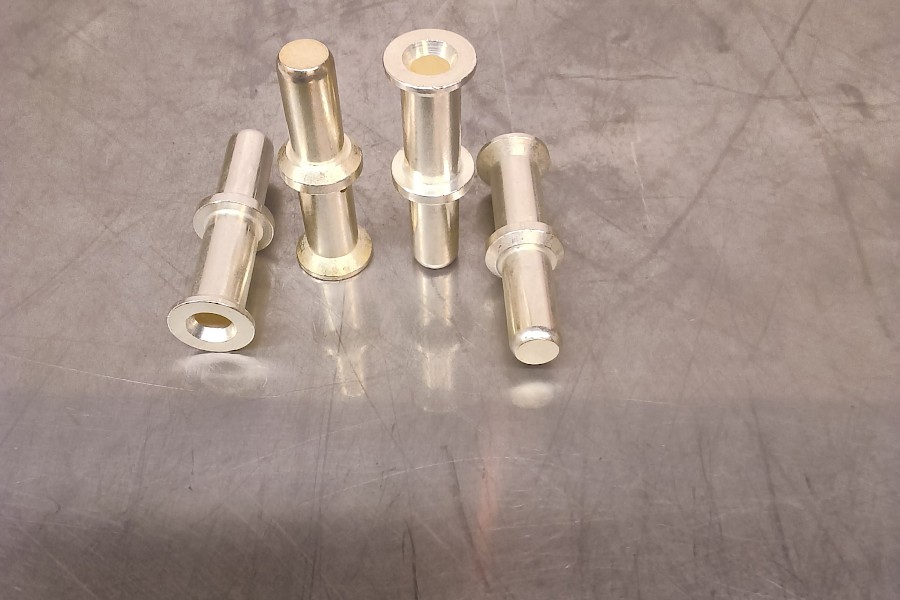

HARTING Puristettava Kosketinnasta 100 A
Type : 100A crimp contact
Design: Contact pin (M)
Type: turned contact
Connection technology: Crimp connection
Cross-section : mm2: 16mm2 AWG: AWG6
Rated current: 100A
Contact resistance: =0.3m0hm
Contact dimensions: Contact diameter: 8.0 mm
Contact length: 40.5 mm
Contact hole Diameter: 5.5 mm
Stripping length: 19.0 mm
Mating cycles: 〉=500
Suitable for: 100A Crimping module
Material: Contact: Copper alloy
Contact surface: hard silver-plated
Colour: Colour shade: silver
Approvals/Standards: Fire behaviour according to UL: V0 according to UL94
Features: - For stranded conductors according to IEC 60 228.class 5.
- RoHS Compliant with exception 6c: Copper alloy with a lead content of up to 4% by mass.
Matching data: More HARTING connectors, HARTING plugs
Varastossa: 10 kpl
hinta per kpl
