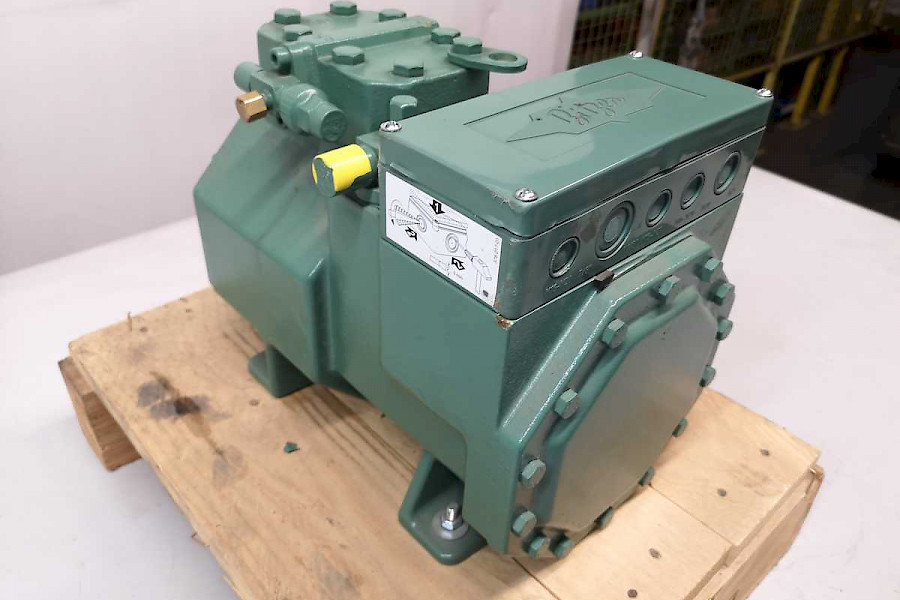

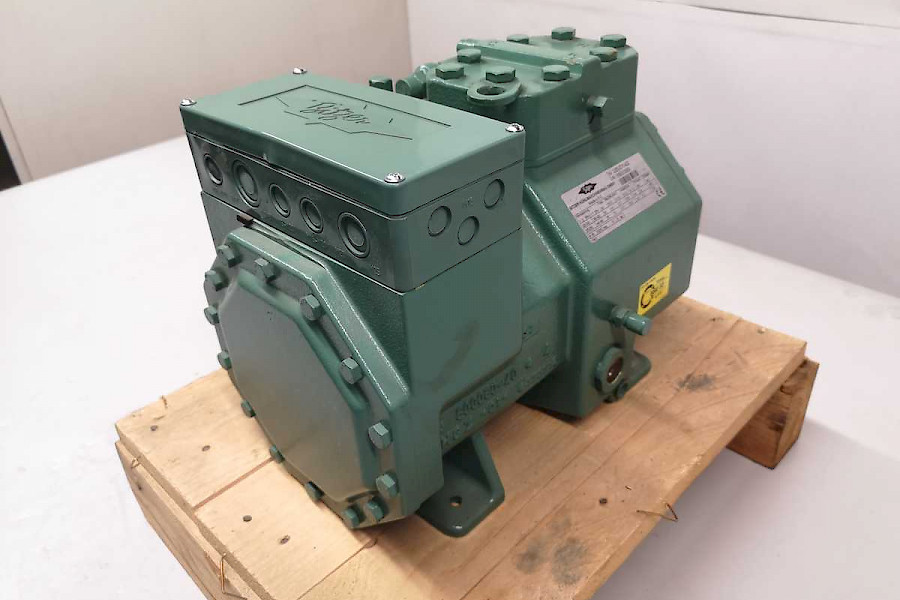

Bitzer 2JES-07Y-40S Semi-Hermetic Reciprocating Compressor 0.75HP 220-420V

Tuotenumero
10278
Hinta

740 € Alv. 0%

Ota yhteyttä →

Sijainti

f0824

Tuotetiedot

Bitzer semi-hermetic kompressori 2JES-07Y-40S 400V

Kunto: käyttämätön
Lähetyspaino: 50 kg

Technical data

Dimensions
Width
220 mm

Height
273 mm

Depth
343 mm

General information
Number of cylinders
2 pcs

Type
halbhermetisch

Refrigerant
R134a


R450A


R513A


R1234yf


R404A/R507A


R448A/R449A


R454C


R455A


R407F

Engine Version
1

Series
CE1

Type
2JES-07Y

Compression type
Hubkolben

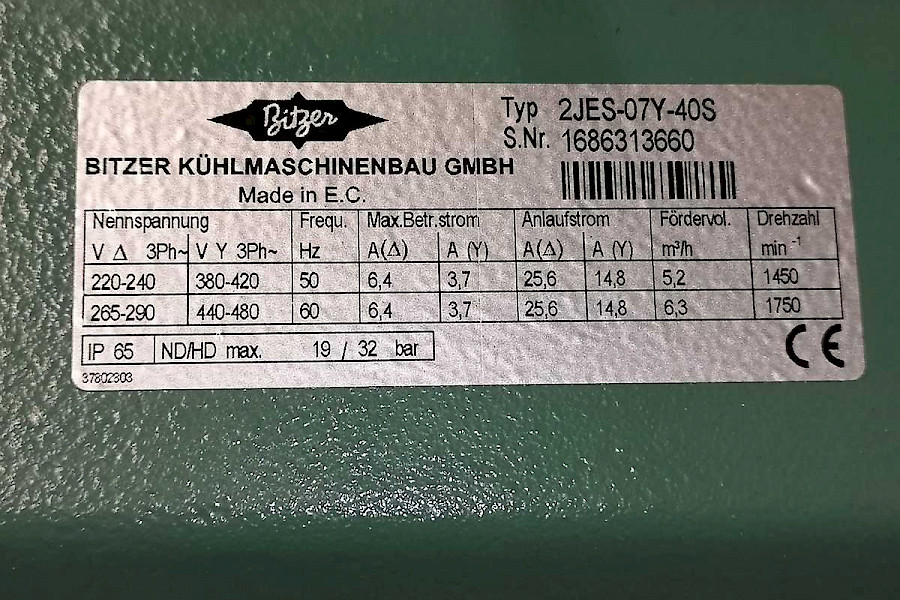

Electrical Data
Starting current (locked rotor)
14,8 A

Supply voltage
400/3/50 V/Ph/Hz
(see explanation 1)
max. operating current
3,7 A
(see explanation 1)
max. power consumption
1,9 kW
(see explanation 1)
Weight
Weight net
43 kg

Performance data
Flow volume
5,21 m³/h

Pipe connections
Pressure line
12,0 mm
1/2 inch
Suction line
16,0 mm
5/8 inch
Sound data
Sound power level
63,0 dB(A)
(+5 °C / 50 °C)
Volume

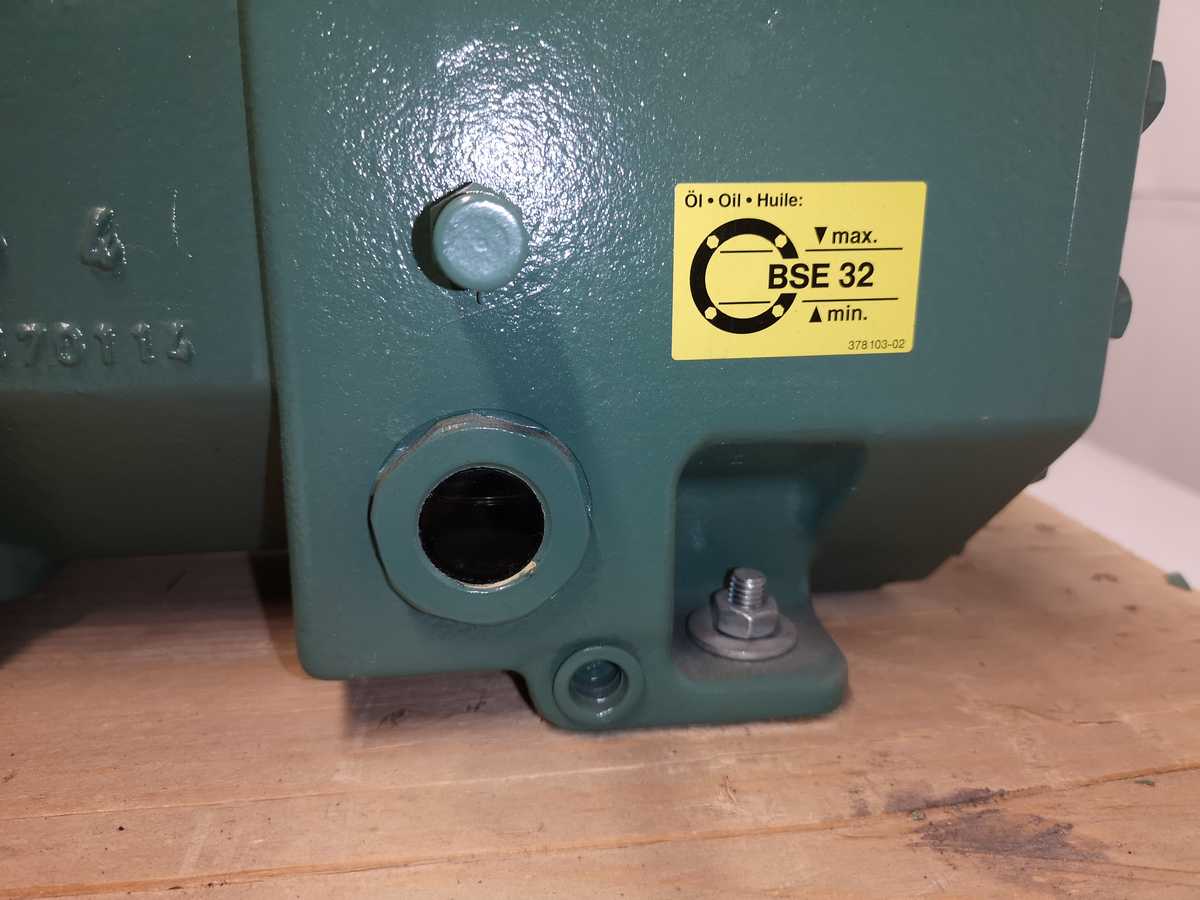

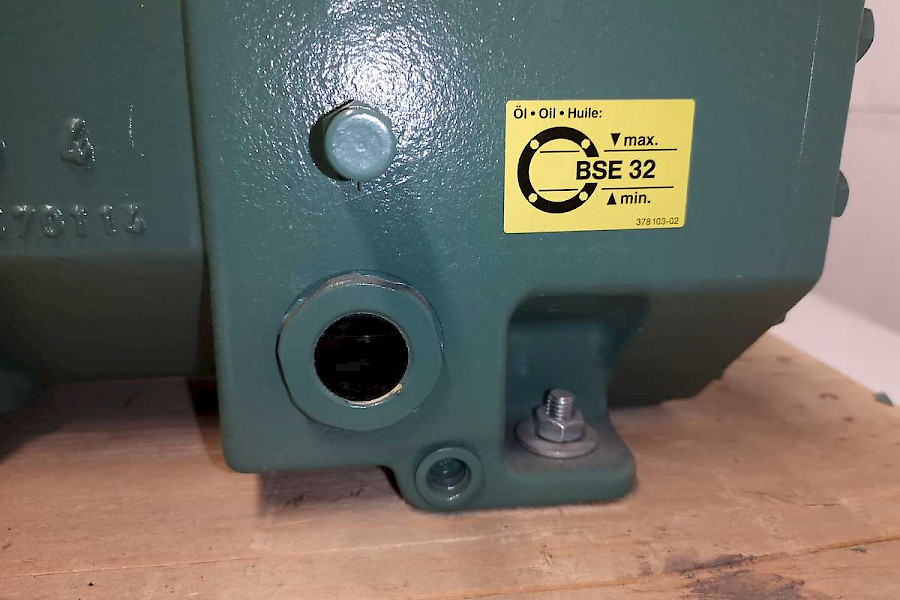

Oil charge
BSE32
Option: BSE55 bei R134a, R450A, R513A, R1234yf tc > 70°C
Oil quantity
1,0 l
