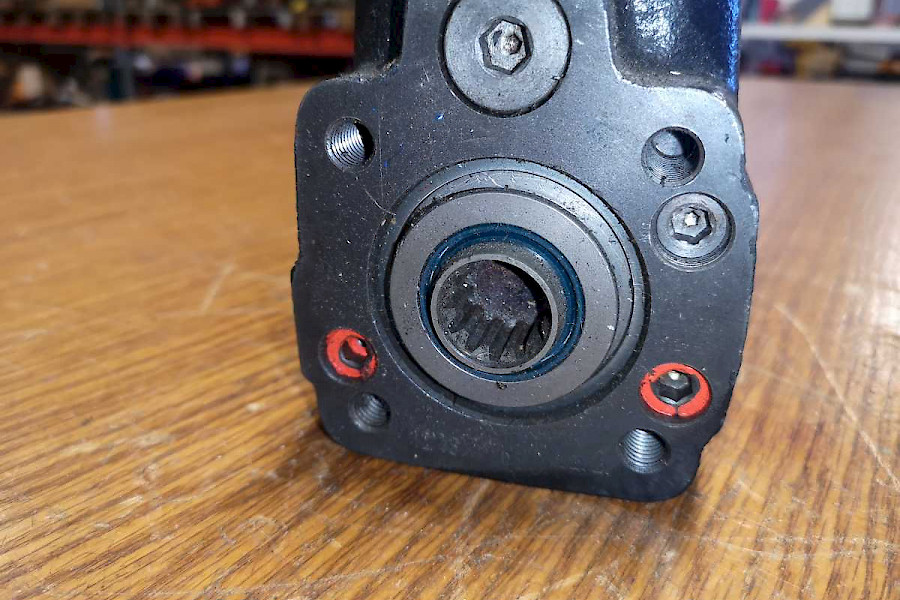

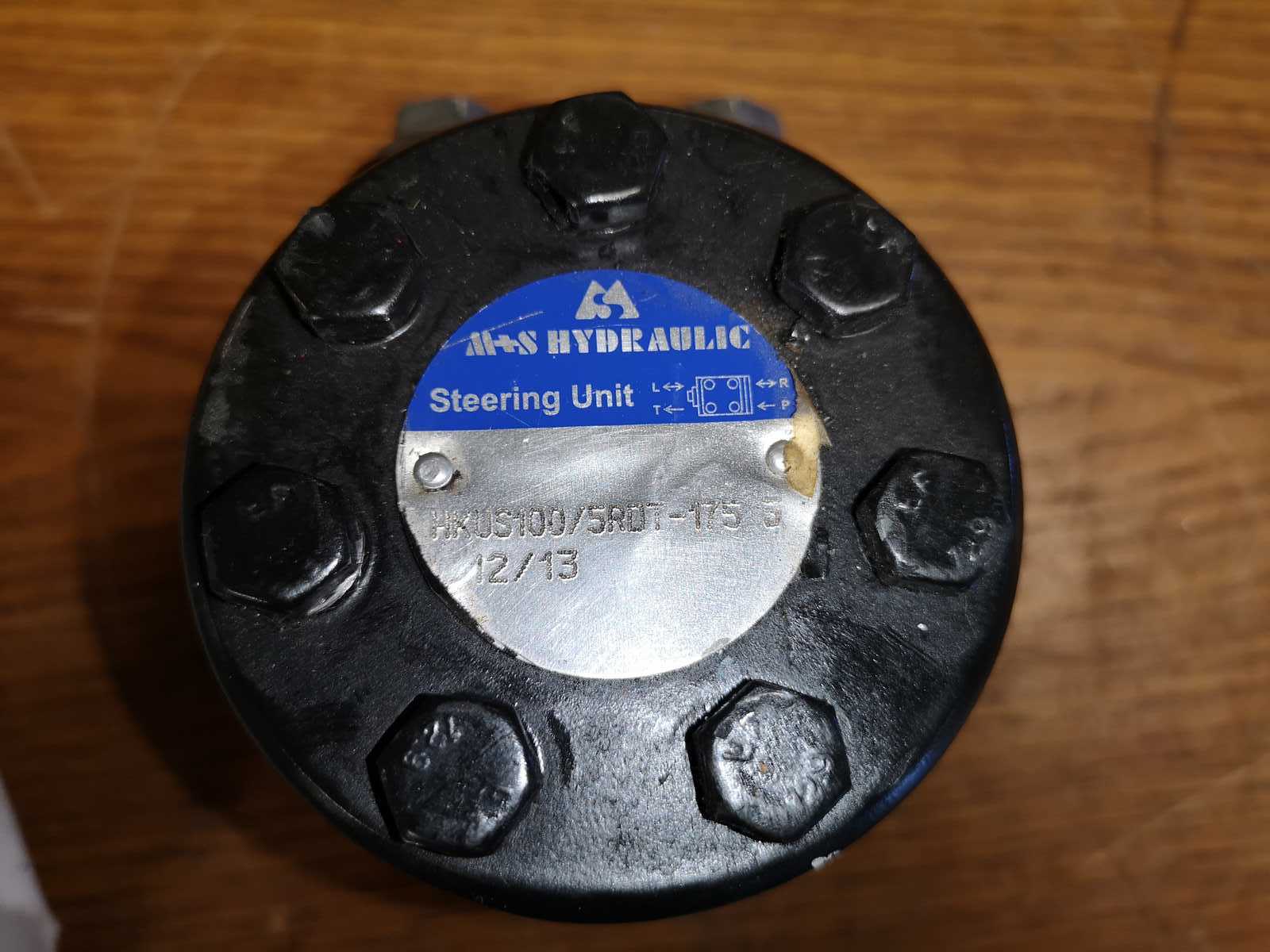

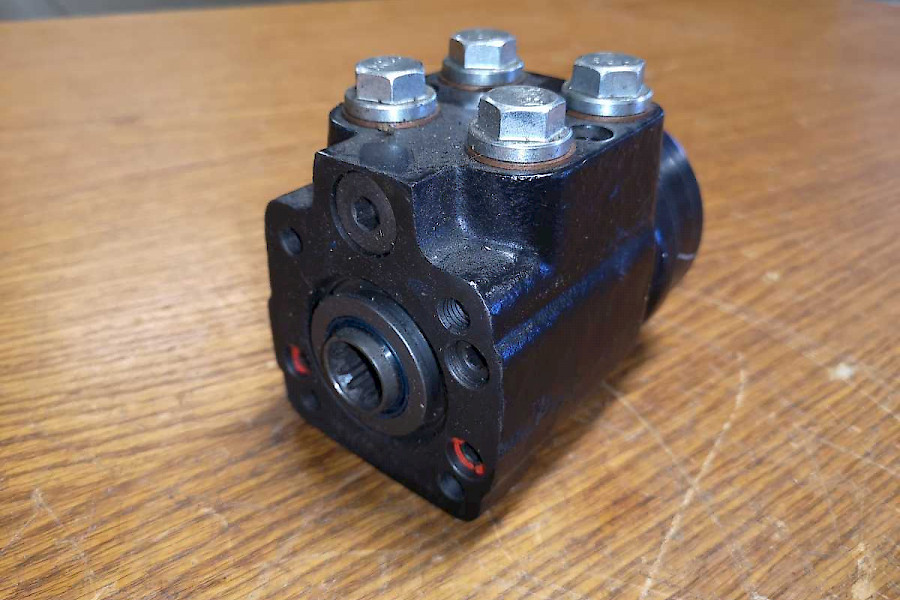

Hydrostatic Steering Unit HKUS 100/5

Sijainti

F0322

Tuotetiedot

Hydrostatic Steering Unit HKUS 100/5 / Ohjausventtiili

Specifications:
Displacement [cm³/rev]: 99.0
Ports: 4x G 1/2 Zoll BSPP
Version 5: Closed Center - Non Reaction Static Signal
Mounting Dimension [mm]: 138,8

Technical Data:
Rated flow: 10l/min
Rated pressure: 175 bar
Relief valve pressure setting: 150 bar*
Shock valve pressure setting: 200 bar
max. Continues pressure in Line T: 20 bar
max. Torque at servoamplifying: 3 Nm
max. Torque wihtout servoamplifying: 120 Nm

PDF esite

Omapaino - 7 kg

Tilaa tuote →
